Krone EASYCUT B 950 COLLECT | Mower used - Nartum

Krone EASYCUT B 950 COLLECT 65.331 €

Dealer number 300155018

Price incl. VAT 19 % 65.331 €

Price excl. VAT 54.900 €

Make Krone

Model EASYCUT B 950 COLLECT

Year of Build 2023

Further information

Machinetyp (Condition): Second-hand machine

Make: Krone

Model: EASYCUT B 950 COLLECT

Year of Build: 2023

Details

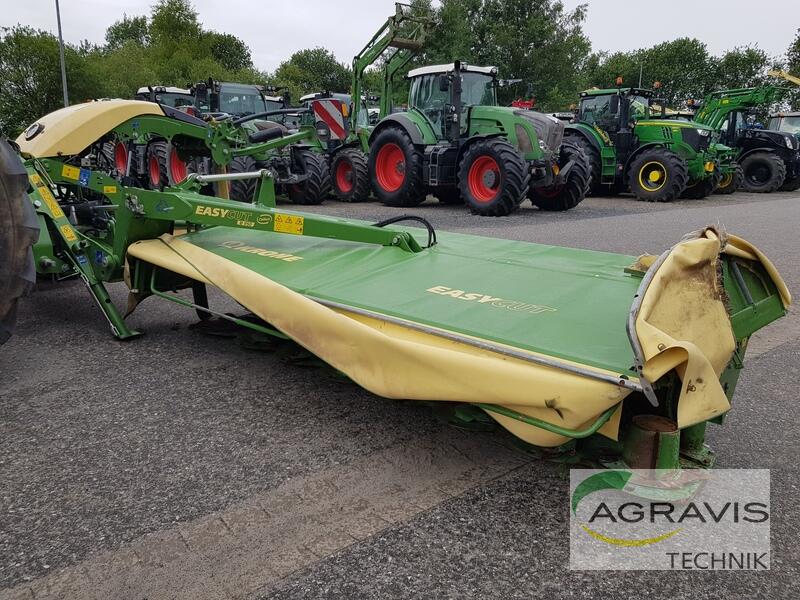

EASYCUT B 950 COLLECT
Krone mower combination
MW_3011 Comfort operation, ISOBUS-compatible
without control terminal, incl.
Hydraulic connection and hose for
control of the front mower
(Operation via ISOBUS tractor terminal
or optional operator terminal)
Necessary hydraulic connections:
Load-sensing system (P/T/LS)
MW_0240 Shear-safe. Turn. "B" wide delivery
MW_0820 Mow. Quick release
B_412 Terminal DS 500
B_383 Hydraulic swath cloth
B_384 Hyd. Rear frame lift
for more clearance with bulky
forage crops
Basic equipment:
Mower frame
KRONE DuoGrip mower suspension
Adjustable collision protection
Hydraulic from the tractor cab
Adjustable cutterbar suspension
Outer and front mower guards
Foldable

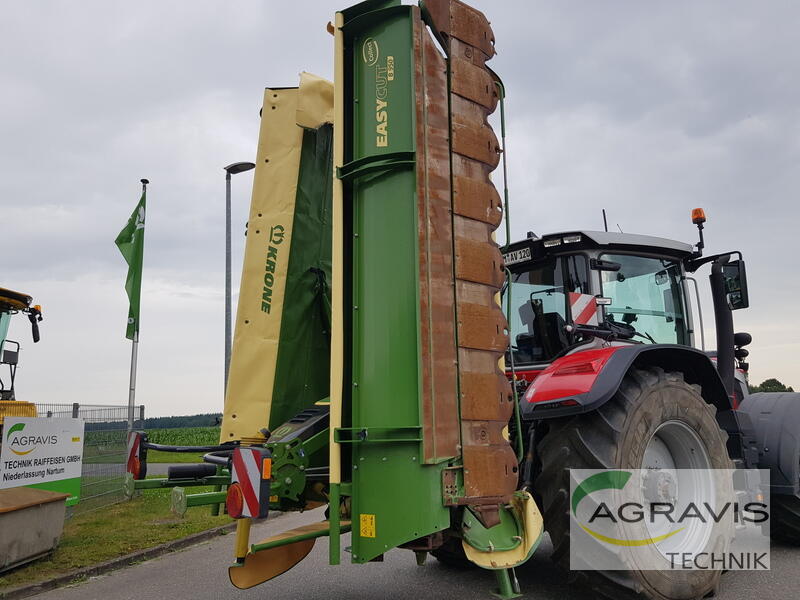

Compact, transverse folding
transport position (95°) upwards and
inwards
Automatic compliance with the
transport height of 4 m (with approx. 20 cm
ground clearance)
Double-acting hydraulic folding
folding process
Space-saving in transport position
can be parked (parking height approx. 4,200 mm)
Protective cover made of stretched
protective cloth
Drive train
PTO shaft-gearbox combination
Tractor PTO shaft, 1 3/8'', Z=6
PTO shaft speed 1,000 rpm
clockwise (0770)
Drive train with freewheel
PTO shaft lubrication interval 250h
Cutter bar
SafeCut shear-off protection
SmartCut mower disk arrangement
Lubricated for life
Welded all round
Large cutter bar cross-section
Hardened skids
Satellite drive
Full swivel range of the blades of
360°
Swath merging
Cross augers (diameter 450 mm)
Closed auger hoods
Electro-hydraulic, can be operated from the
from the tractor cab for wide delivery
/ part-width delivery /
swath merging
Further equipment
Removable blade boxes
LED lighting (light/brake light)
incl. warning signs
Technical data:
Working width 2 x 3,600 mm
Working width in conjunction with
Front disc mower: 9,455 mm
Distance between the mower units:
2,255 mm
Transport width 2,990 mm (rear)
Transport height incl. 200 mm
Ground clearance: approx. 4,000 mm
Seven mowing discs, one mowing drum (per
mowing unit)
Power requirement from approx. 118 kW (160 hp)
Dead weight approx. 2,988 kg
Hydraulic connections required:
2 x double-acting + load sensing system (pressure / return
return / signal line)
Lower link support Cat. II / III
Automatic translation from German without guarantee.
Show original description
